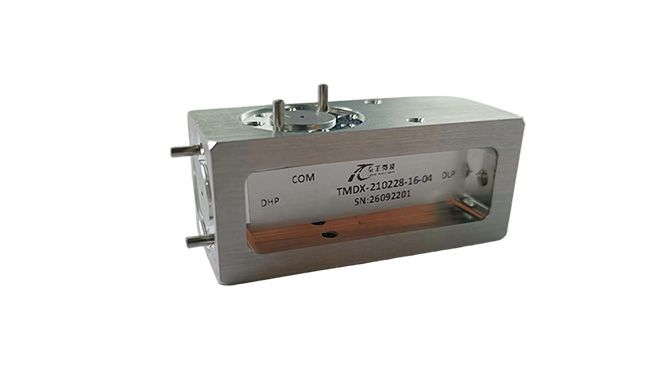

TMDX-210228-16-04
TMDX-210228-16-04 is a broadband low pass/high pass diplexer capable of multiplexing low frequency (200-216GHz) and high frequency (222-243GHz) signals.. The diplexer offers a typical insertion loss of 2 dB. All ports exhibit good impedance matching for transmit‑ receive duplexing applications across the operating band. The input and output ports configuration offers an inline structure with WR-4.3 waveguides and UG-387/U-M anti-cocking flanges.
Out of band suppression (dB)＞50@222GHz&＞50@216GHz
Frequency(GHz)200-216&222-243
Insert. Loss(dB)2
RF ConnectorWR-4.3
Specification Click to download the specification
