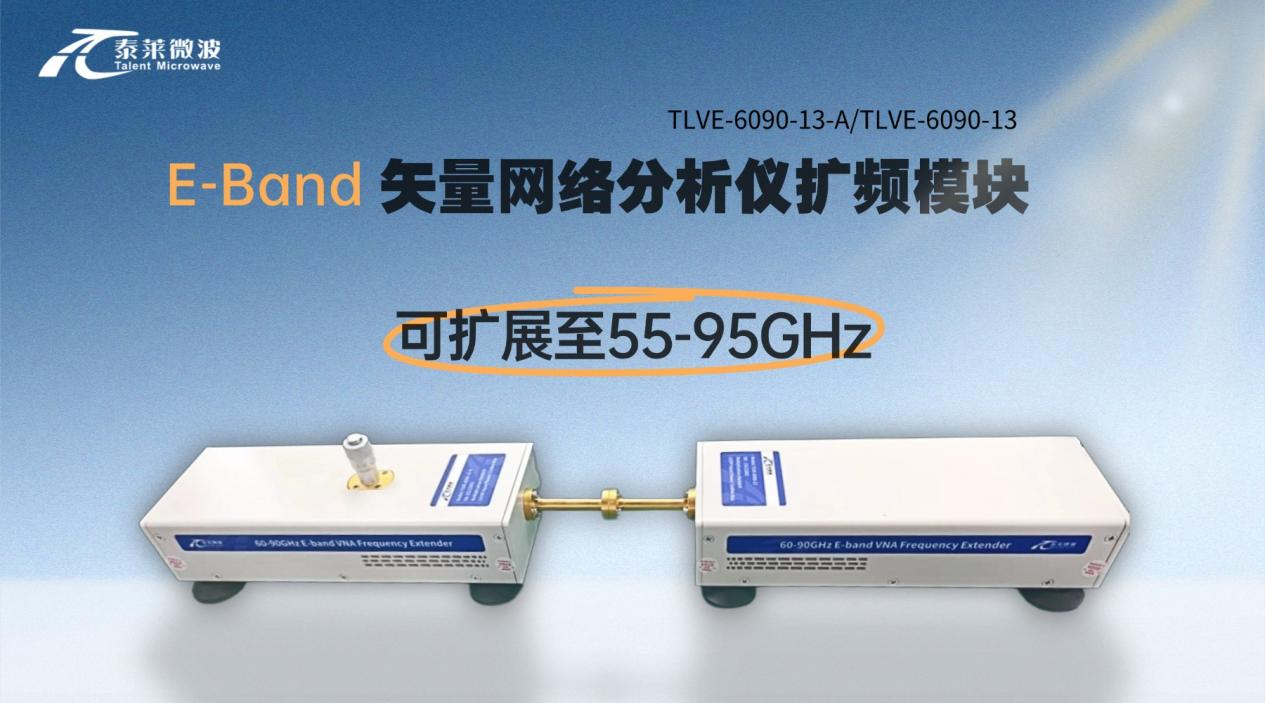

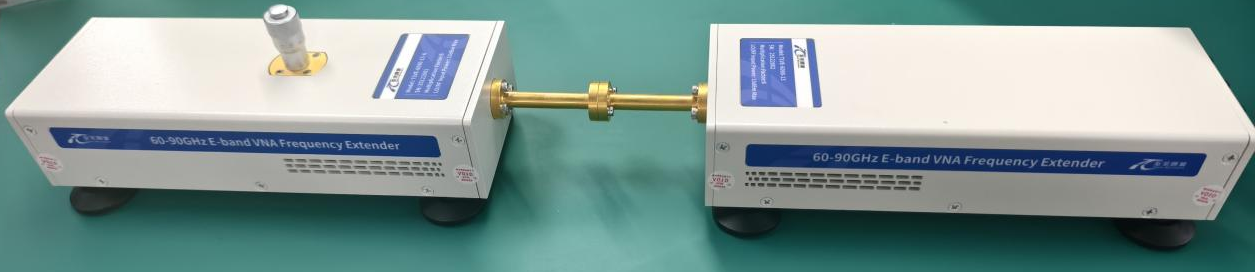

Talent Microwave recently introduced its E-Band miniaturized vector network analyzer frequency extension module (TLVE-6090-13-A/TLVE-6090-13). This module features a builtin 30 dB adjustable attenuator and can be paired with mainstream vector network analyzers from Keysight, Rohde & Schwarz, and domestic brands to rapidly build millimeter-wave S-parameter test systems.

Core Advantages:

a.High output power, frequency range expandable to 55–95 GHz, with wide program-controlled adjustment range.

b.High amplitude and phase stability, ensuring accurate and reliable measurements.

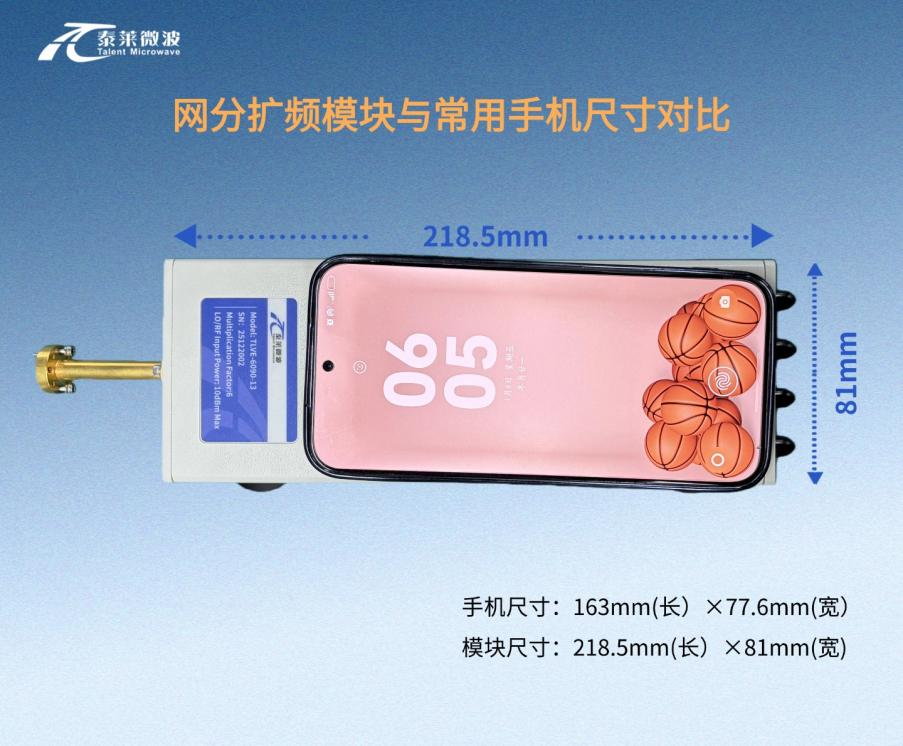

c.Compact size saves space and facilitates integration and portability.

d.Compatible with multiple test scenarios: automotive radar testing, material measurement systems, microwave device and component testing, semiconductor testing, etc.

Talent Microwave also provides frequency extension modules for other bands to support high-precision testing needs across various frequency ranges.

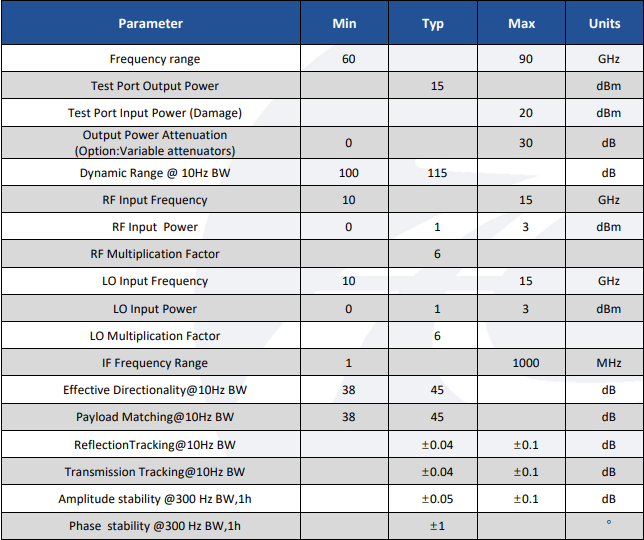

Electrical Characteristics:

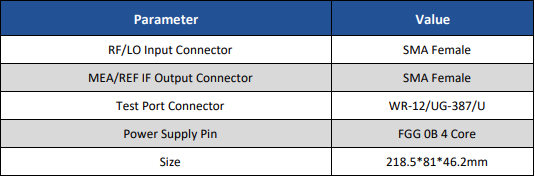

Mechanical Specifications:

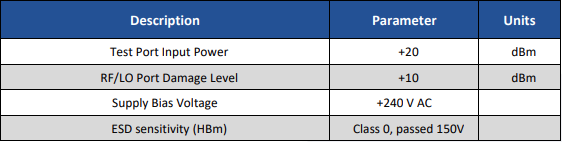

Absolute Maximum Ratings:

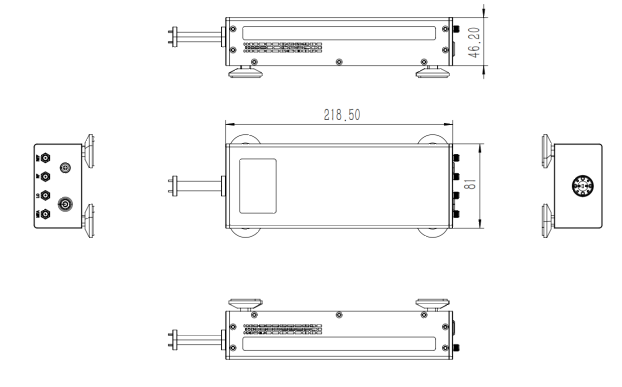

Outline Drawing:

                                                                                                                   TLVE-6090-13-A

                                                                                                                          TLVE-6090-13

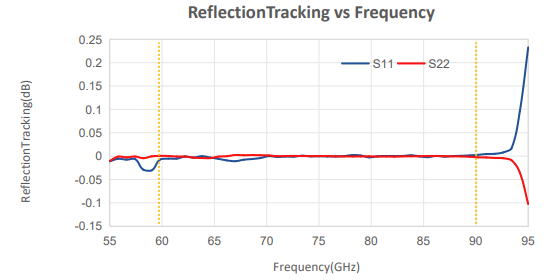

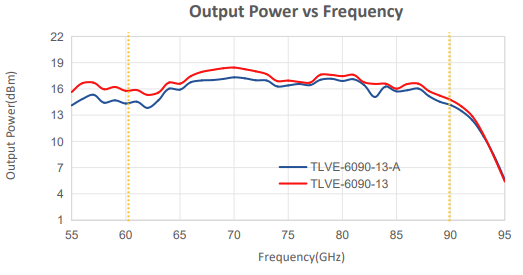

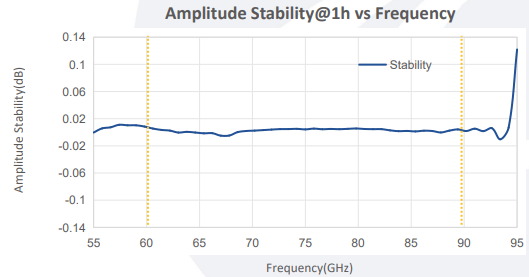

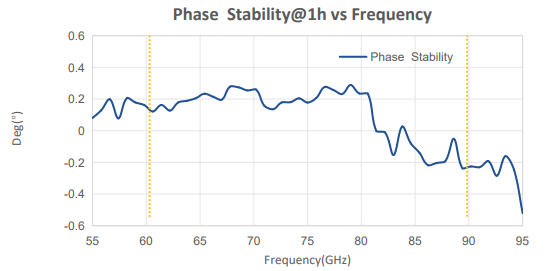

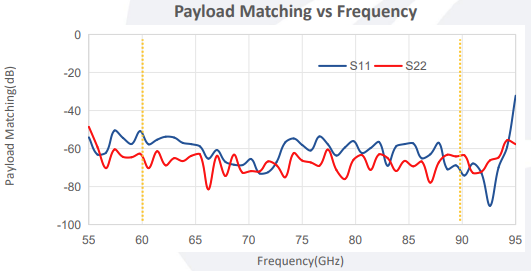

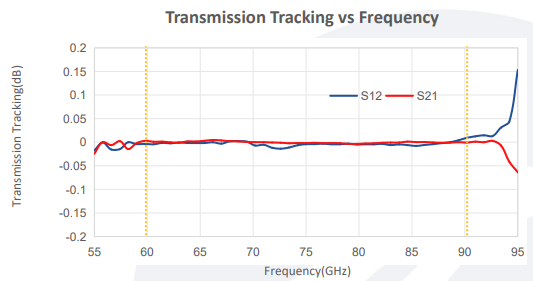

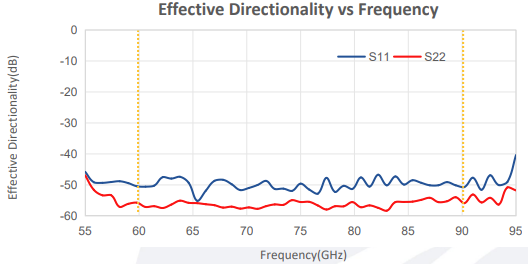

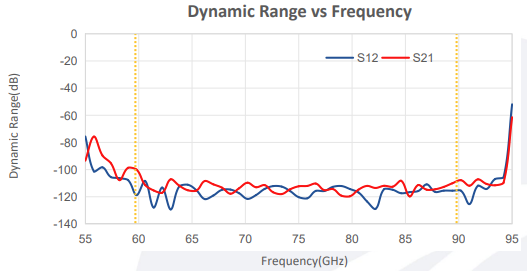

Typical Performance Data:
