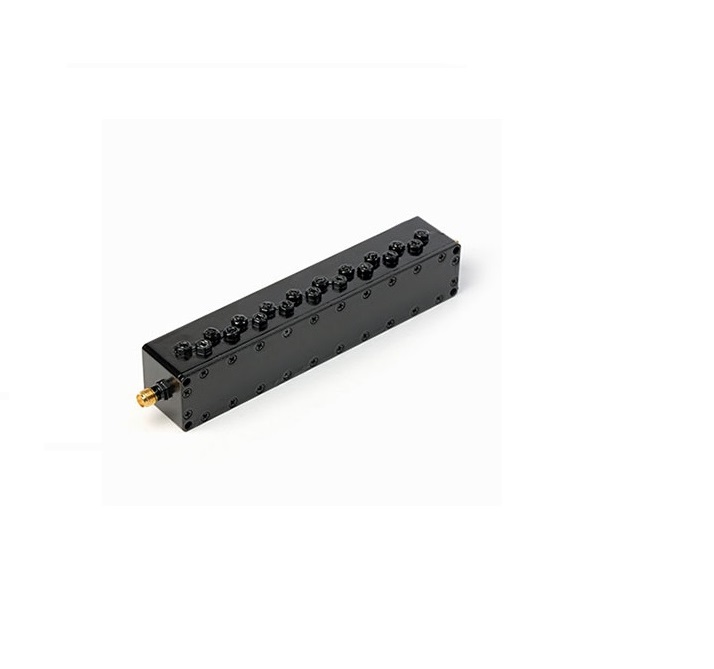

TLBF-10M-5-L
Bandpass filter TLBF-10M-5-L is a high-frequency band-pass filter with a center frequency of 10000MHz and a band-pass bandwidth of 1MHz. The insertion loss of this model of filter is less than 3.5dB and the rejection rate is more than 40dB. SMA-Female connector is adopted.
Center Frequency (MHz) |
10 |
Bandwidth (MHz) |
1 |
Out of band suppression (dB) |
>40dB@DC-1MHz |
Insert. Loss(dB) |
3.5 |
Connector Type1 |
SMA Femlae |
In band fluctuation (DB) |
2.3 |
Specification |
Click to download the specification
|
