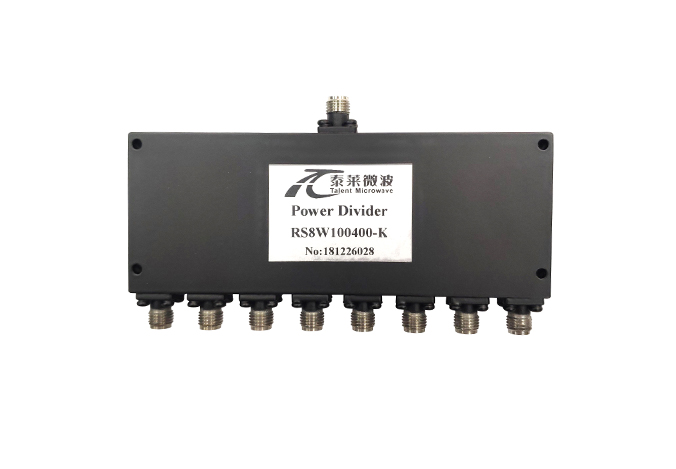

RS8W1040-S
The RS8W1040-S is an 8-channel power splitter that operates at frequencies ranging from 1 to 4GHz. Tele Microwave offers coaxial power splitters with frequencies up to 67GHz. Any model can be optimized according to customer requirements, customized size. Talent Microwave has passed ISO9001 and GJB-9001C national military standard certification.
| Frequency(GHz) Min | 1 |
| Frequency(GHz) Max | 4 |
| Splitter Ways | 8Way |
| Isolation(dB) | 18 |
| Insert. Loss(dB) | 1.5 |
| Phase Balance(°) | 5 |
| Amp Balance(dB) | 0.5 |
| VSWR | 1.5 |
| Connector | SMA |
| Power(W) | 20 |
| Operating Temperature | -40-+80℃ |
| Specification |
Click to download the specification
|
