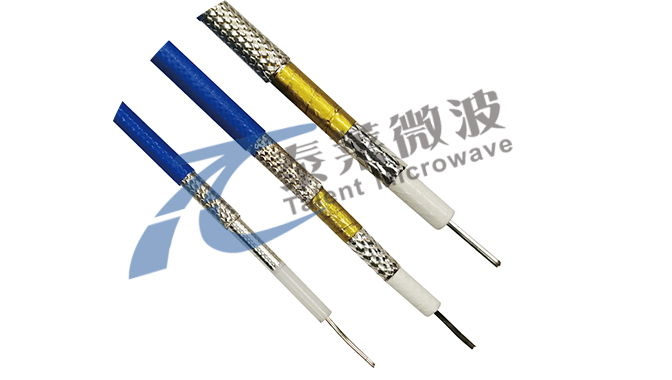

S6
Frequency (GHz) DC-6
Jacket(mm) 14.7
Velocity(%) 76
Mechnical Phase（º）@18GHz ±3.5°
Attenuation(dB)@6GHz 0.27
Attenuation(dB)@18GHz NA
Attenuation(dB)@40GHz NA
Phase Change vs . Temp(PPM） ≤1500
Operating Temperature -55℃ - +125℃
Specification Click to download the specification
