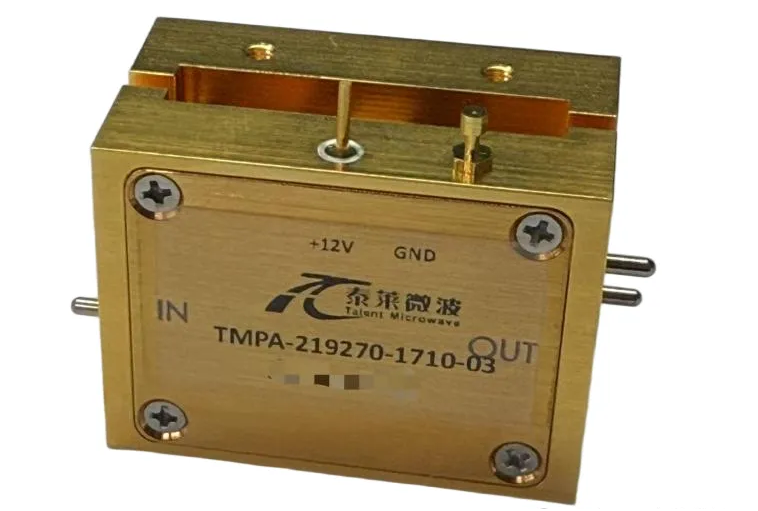

Talent Microwave has launches a 219–270 GHz power amplifier (TMPA-219270-1710-03). Operating across the 219–270 GHz frequency band, this amplifier delivers a typical small signal gain of 17 dB and a typical saturated output power of 10 dBm. Its DC power supply requirement is +12 VDC / 210 mA. The output interface is a WR 3.4 waveguide with UG-387/U-M flange.
The 219–270 GHz power amplifier is characterized by its high operating frequency and broad bandwidth, making it a capable solution for advanced terahertz applications.

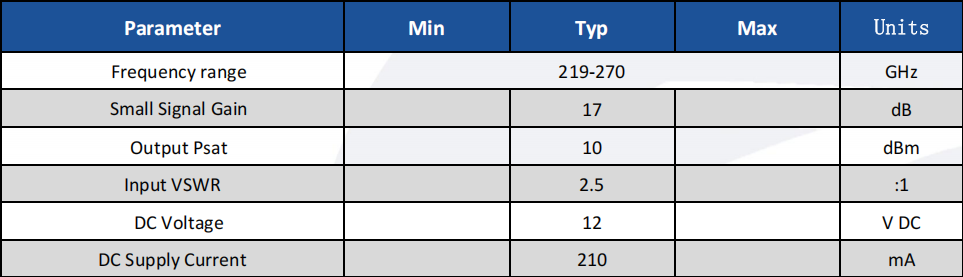

Electrical Characteristics:

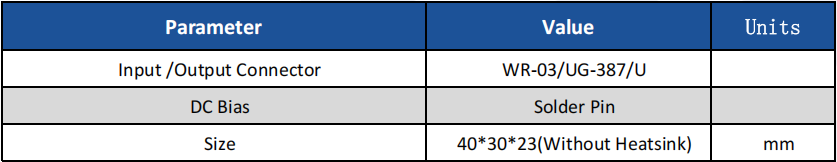

Mechanical Specifications:

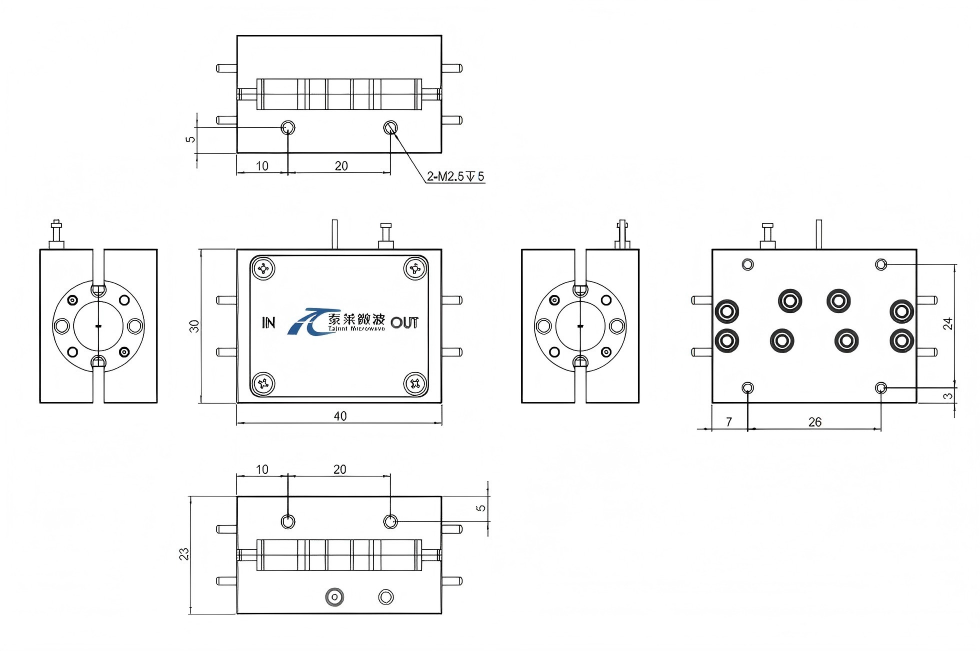

Outline Drawing: Unit:mm

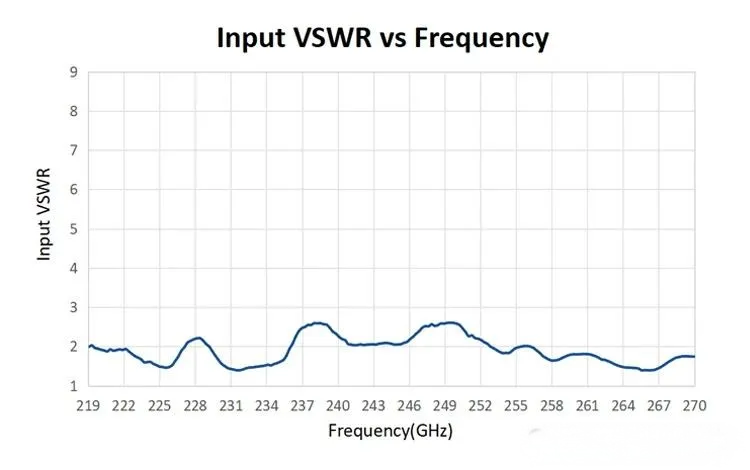

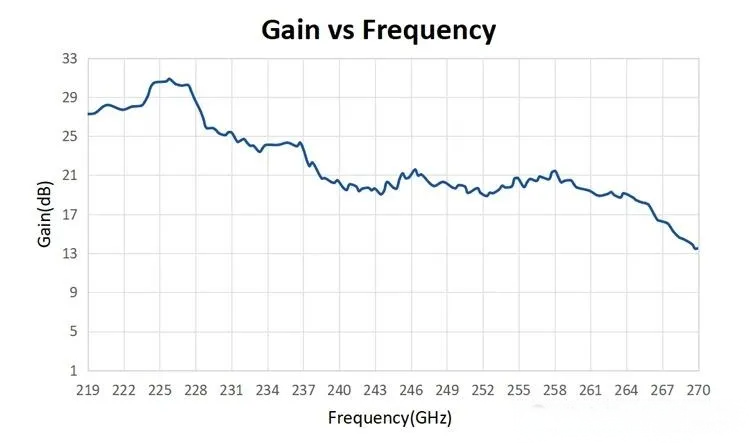

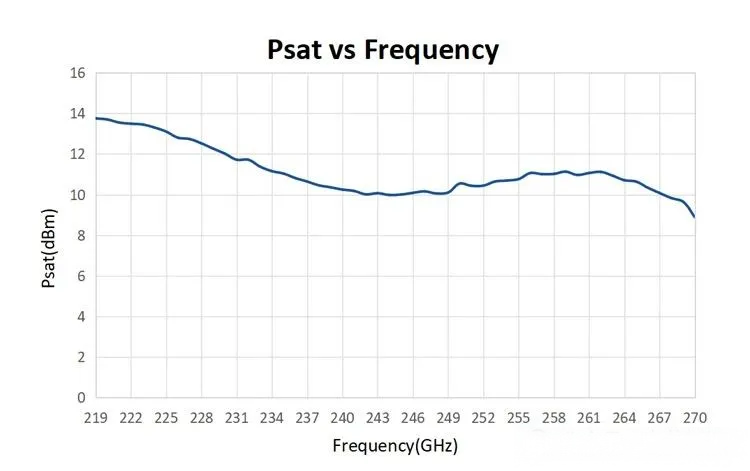

Typical Performance Data:
