In millimeter-wave communications, radar detection, and high-speed data transmission, high-frequency and high-precision signal processing equipment is crucial.

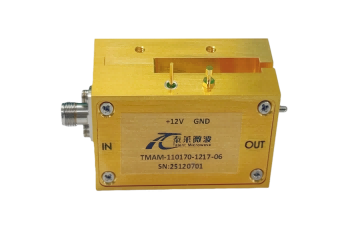

Talent Microwave proudly introduces the TMAM-110170-1217-06 active broadband frequency multiplier.It offers full D-band coverage, high output power, and superior harmonic suppression, meeting the most demanding RF system requirements!
 |

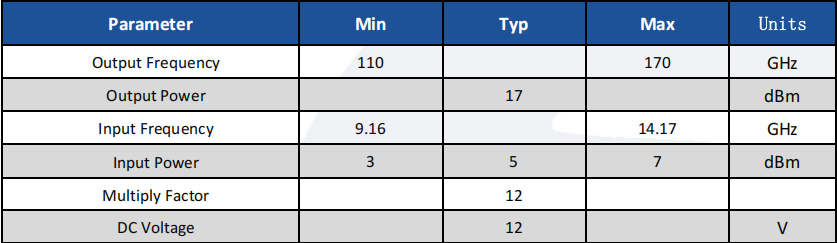

Performance Parameters：
Technical Highlights
1. Broadband Coverage
Utilizing a multi-chip integrated design, it achieves full coverage across the 110-170GHz D-band.
2. High Output Power

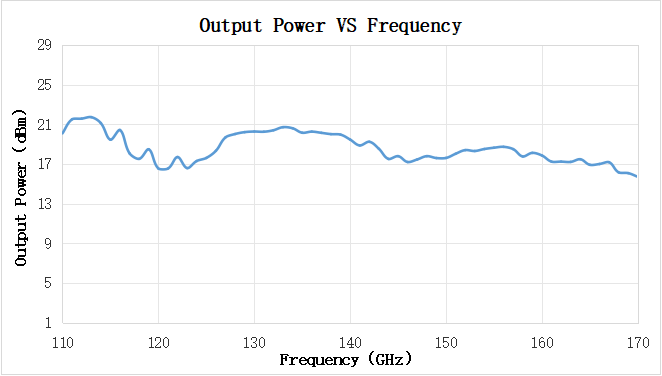

After frequency multiplication within the 110-170GHz range, the typical output power reaches +17dBm.
Application Scenarios
Suitable for signal source frequency extension and terahertz systems.
The 110-170GHz x12 frequency multiplier is a key device in millimeter-wave and terahertz fields, providing excellent performance support for both cutting-edge scientific research and commercial applications!
